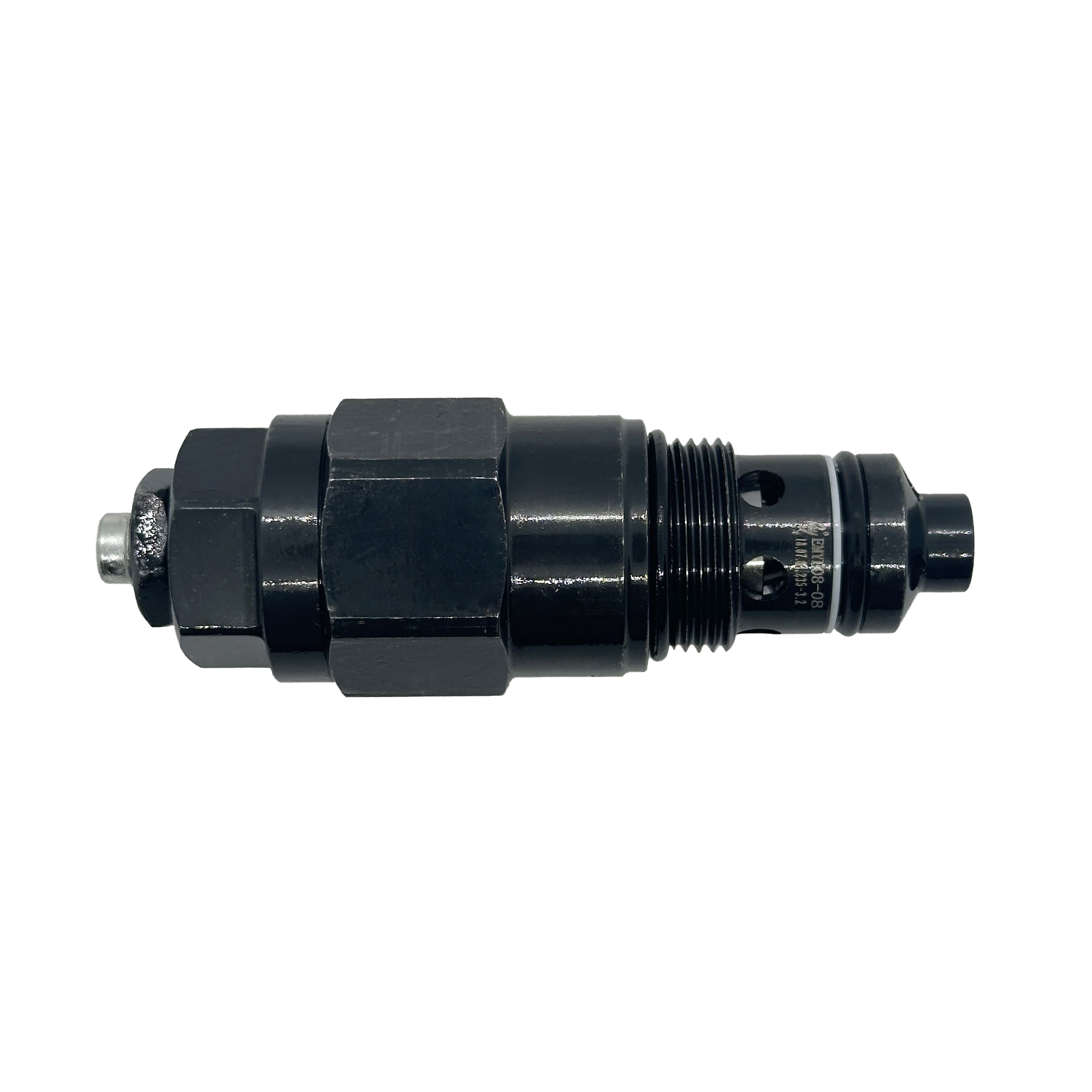

EMYF08-08 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):175bar
2.額定流量(Rated flow):60L/min
3.開啟率(Cracking Rate)≥92%
4.閉合率(Closing Rate)≥87%
5.內泄漏(Internal leakage) ≤10ml/min at 131 bar
6.油液清潔度(Cleaning code):20/18/15(NAS9)
7.工作溫度(Temperature range):-20~+100℃
8.每轉壓力變化(Pressure change per turn):54bar
9.安裝扭矩(Installation Torque):40~45Nm
10.鎖緊扭矩(Nut Tightening Torque):18~23Nm
-
EMXF19-02 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):195bar
2.額定流量(Rated flow):225L/min
3.開啟率(Cracking Rate)≥88%
4.閉合率(Closing Rate)≥83%
5.補油開啟壓力(Oil make-up Cracking Pressure):19bar
6.內泄漏 (Internal Leakage) ≤60ml/min at 146bar
7.油液清潔度(Cleaning code):20/18/15(NAS9)
8.工作溫度(Temperature range):-20~+100℃
9.每轉壓力變化(Pressure change per turn):83bar
10.安裝扭矩(Installation Torque):45~50Nm
11.鎖緊扭矩(Nut Tightening Torque):25~30Nm
-

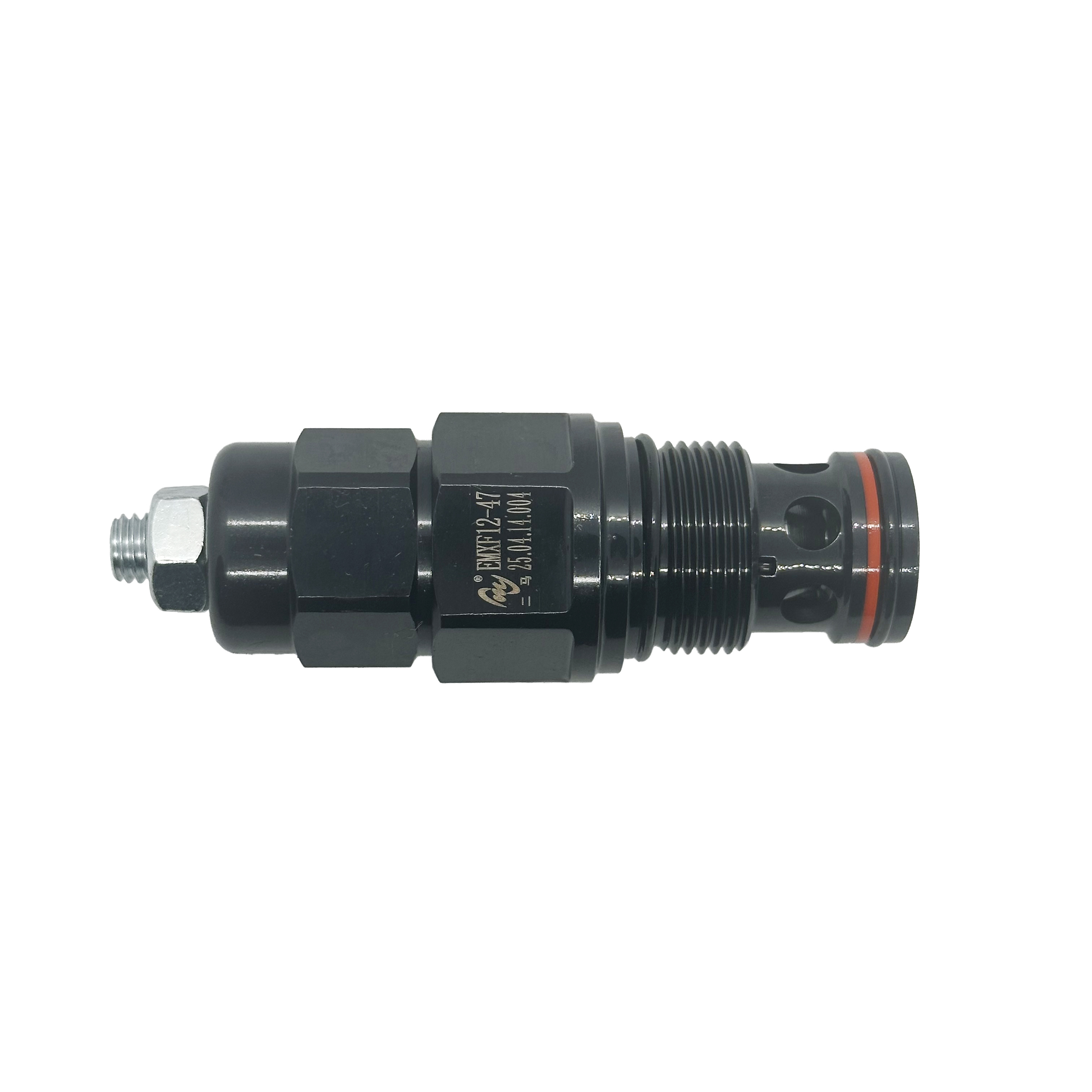

EMXF12-47/48/49 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定流量:100L/min
2.調定壓力:20MPa
3.開啟率≥85%，閉合率≥80%
4.調壓范圍:4-30MPa
-

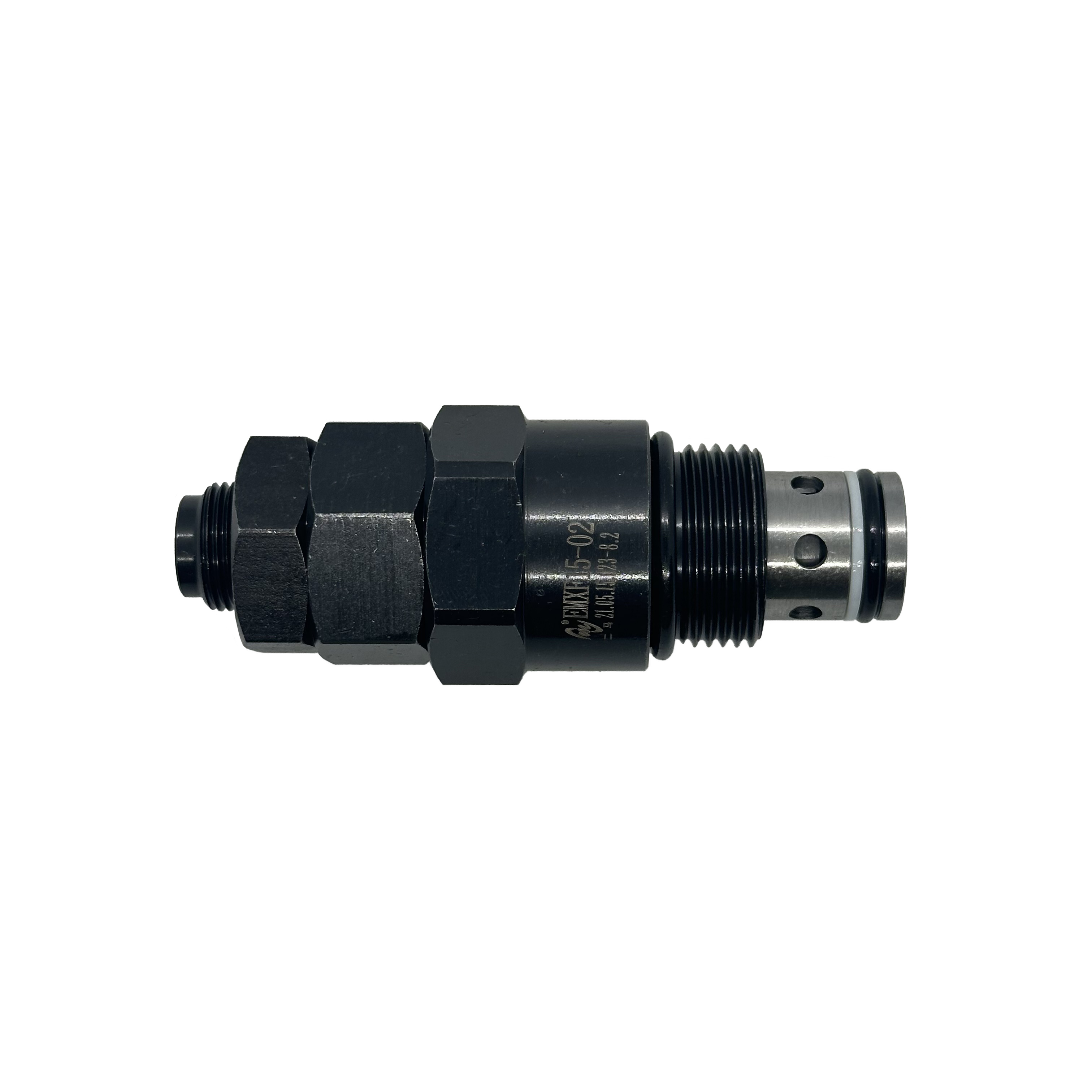

EMXF15-02 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力 (Rated pressure):100bar
2.額定流量(Rated flow):40L/min
3.開啟率(Cracking Rate)≥90%
4.閉合率(Closing Rate)≥85%
5.補油開啟壓力(Oil Make-up Cracking Pressure):0.6bar
6.內泄漏(Internal Leakage) ≤30ml/min at 75bar
7.油液清潔度(Cleaning code):20/18/15(NAS9)
8.工作溫度(Temperature range):-20~+100℃
9.每轉壓力變化(Pressure change per turn):60bar
10.安裝扭矩(Installation Torque):38~43Nm
11.鎖緊扭矩(Nut Tightening Torque):27~32Nm
-
EMJF06-06 減壓閥 Reducing valves
技術參數 Specifications更多 +
1.最大流量(Flow Max):11L/min
2.最大輸入壓力(Pressure input Max):315bar
3.減壓壓力(Pressure reducing):40±2bar
4.泄漏量(Internal leakage)≤90ml/min at 200bar
5.油液清潔度(Cleaning code):20/18/15(NAS9)
6.工作溫度(Temperature range):-20~+100℃
7.安裝扭矩(Installation torque):33~40Nm
-

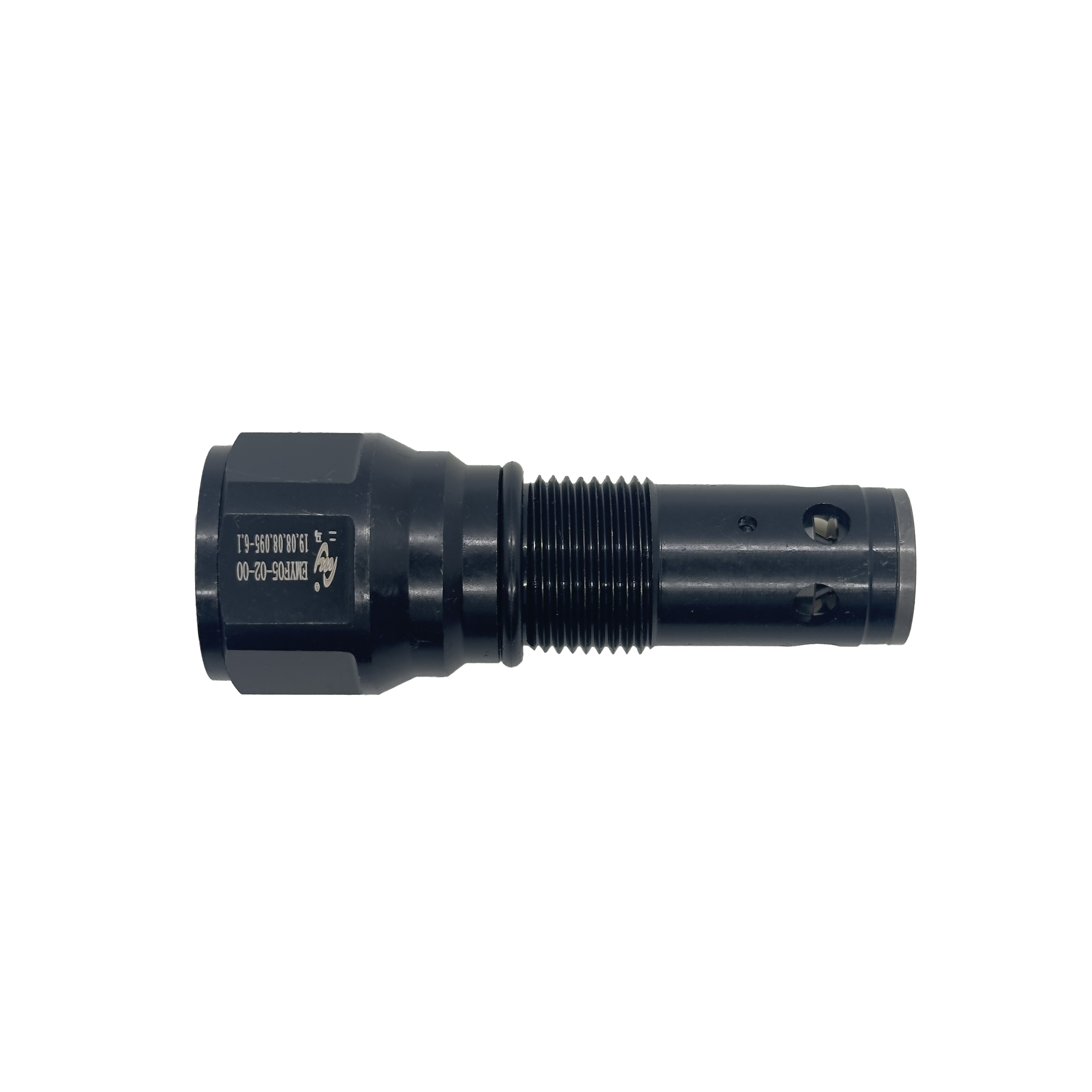

EMYF05-02 緩沖溢流閥 Soft impact relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):350bar
2.額定流量(Rated flow):60L/min
3.開啟率(Cracking Rate) ≥85%
4.閉合率(Closing Rate)≥80%
5.內泄漏(Internal leakage)≤100ml/min at 262.5 bar
6.油液清潔度(Cleaning code):20/18/15(NAS9)
7.工作溫度(Temperature range):-20~+100℃
8.安裝扭矩(Installation Torque):35~40Nm
-

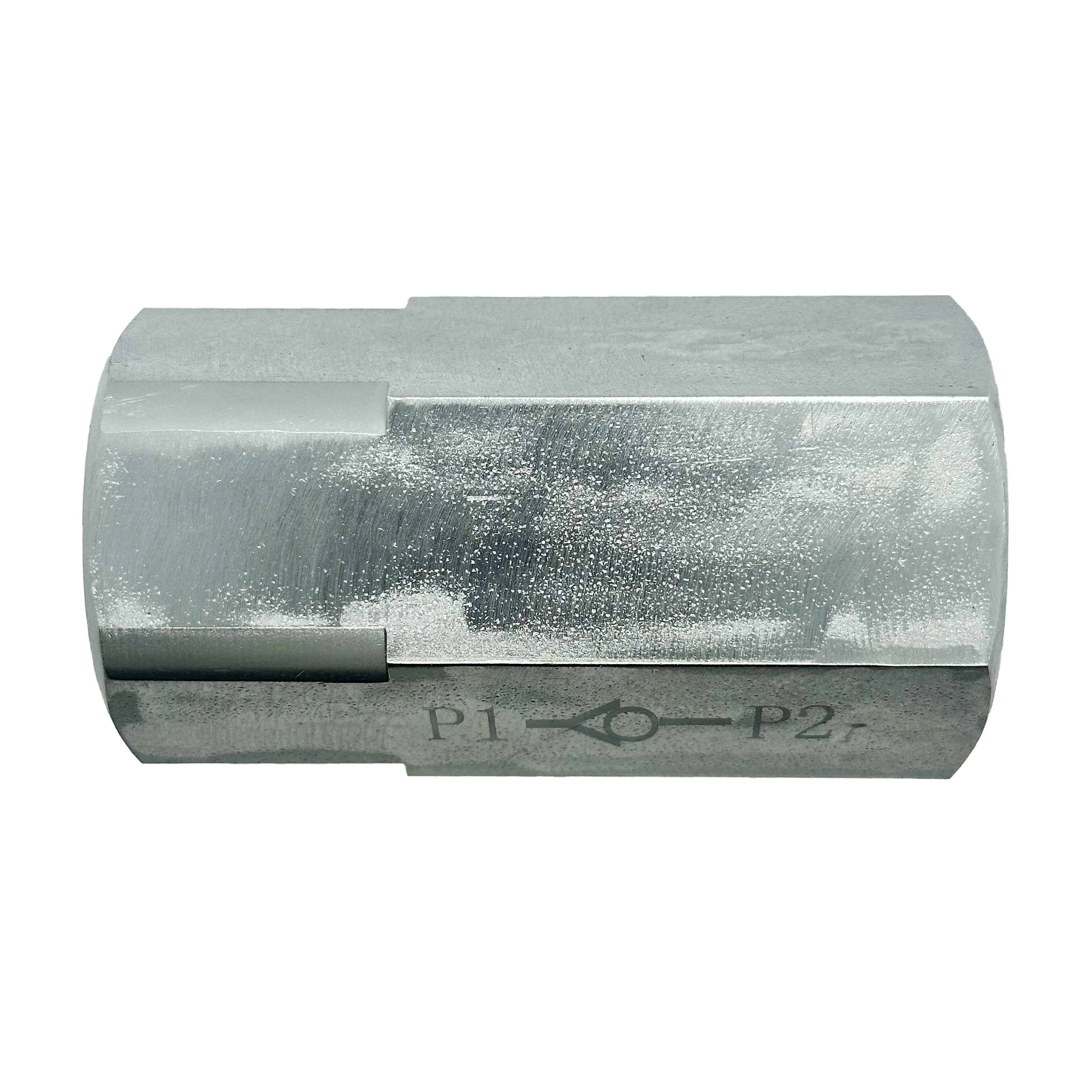

EMDF38-01單向閥 Check valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):315bar
2.額定流量(Rated flow):300L/min
3.開啟壓力(Cracking pressure):0.6bar
4.泄漏量(Internal leakage):2 drops/min
5.油液清潔度(Cleaning code):20/18/15(NAS9)
6.工作溫度(Temperature range):-20~+100℃
7.安裝扭矩(installation torque):90~100Nm
-

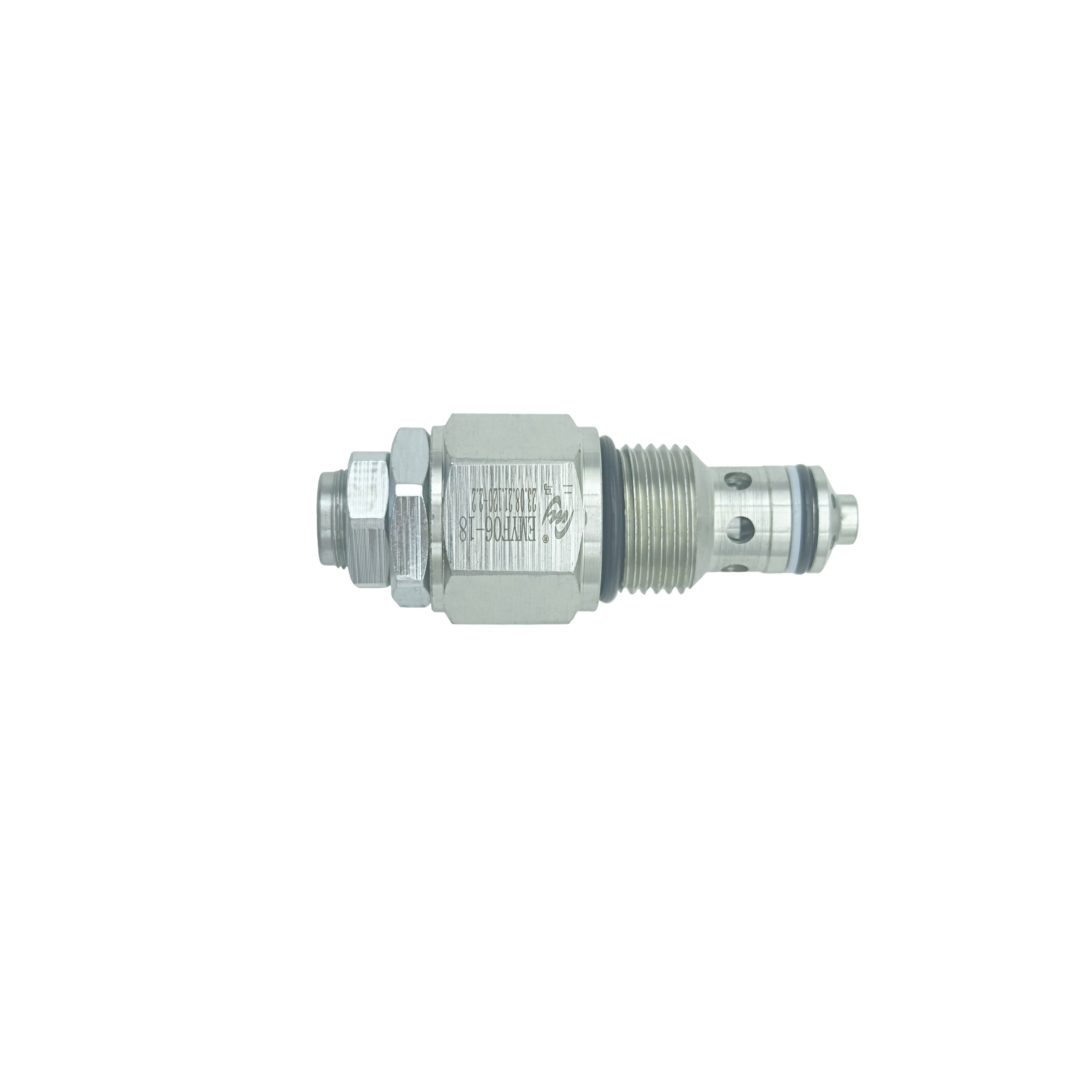

EMYF06-18 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):245bar
2.額定流量(Rated flow):70L/min
3.開啟率(Cracking Rate)≥87%
4.閉合率(Closing Rate)≥85%
5.內泄漏(Internal leakage) ≤10ml/min at 183bar
6.油液清潔度(Cleaning code):20/18/15(NAS9)
7.工作溫度(Temperature range):-20~+100℃
8.每轉壓力變化(Pressure change per turn):65bar
9.安裝扭矩(Installation Torque):40~45Nm
10.鎖緊扭矩(Nut Tightening Torque):38~43Nm
-

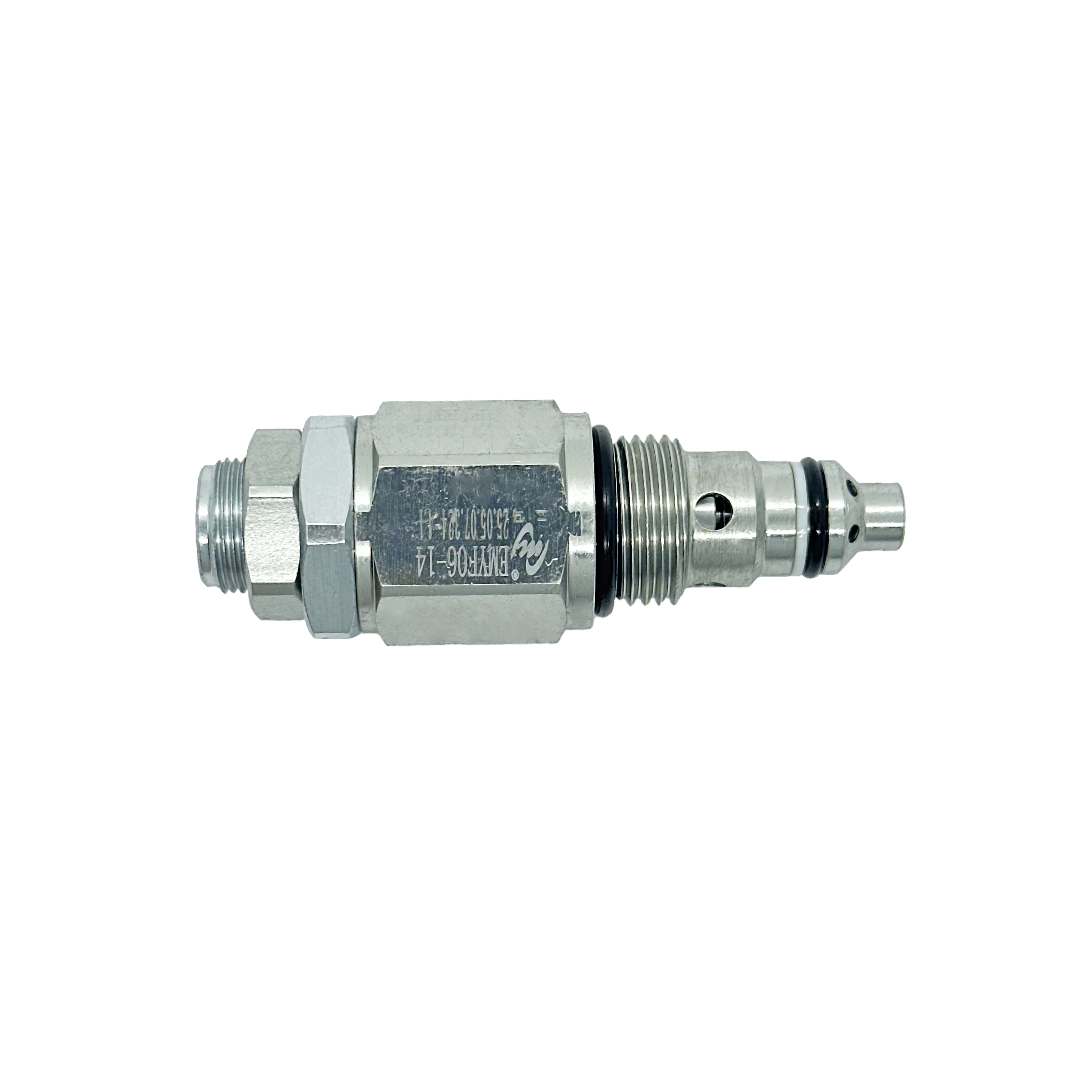

EMYF06-14 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):200bar
2.額定流量(Rated flow):30L/min
3.開啟率(Cracking Rate)≥90%
4.閉合率(Closing Rate)≥87%
5.內泄漏(Internal leakage) ≤10ml/min at 150bar
6.油液清潔度(Cleaning code):20/18/15(NAS9)
7.工作溫度(Temperature range):-20~+100℃
8.每轉壓力變化(Pressure change per turn):56.5bar
9.安裝扭矩(Installation Torque):35~40Nm
10.鎖緊扭矩(Nut Tightening Torque):30~34Nm
-
EMYF06-13 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):140bar
2.額定流量(Rated flow):50L/min
3.開啟率(Cracking Rate)≥94%
4.閉合率(Closing Rate)≥86%
5.內泄漏(Internal leakage)≤10ml/min at 105 bar
6.油液清潔度(Cleaning code):20/18/15(NAS9)
7.工作溫度(Temperature range):-20~+100℃
8.每轉壓力變化(Pressure change per turn):31.7bar
9.安裝扭矩(Installation Torque):40~45Nm
10.鎖緊扭矩(Nut Tightening Torque):30~34Nm
-
EMYF05-21 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):150bar
2.額定流量(Rated flow):30L/min
3.開啟率(Cracking Rate)≥95%
4.閉合率(Closing Rate)≥90%
5.內泄漏(Internal leakage) ≤10ml/min at 112bar
6.油液清潔度(Cleaning code):20/18/15(NAS9)
7.工作溫度(Temperature range):-20~+100℃
8.每轉壓力變化(Pressure change per turn):38.9bar
9.安裝扭矩(Installation Torque):35~40Nm
10.鎖緊扭矩(Nut Tightening Torque):28~34Nm
-
EMYF04-02 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):420bar
2.額定流量(Rated flow):30L/min
3.開啟率(Cracking Rate)≥90%
4.閉合率(Closing Rate)≥86%
5.內泄漏(Internal leakage) ≤10ml/min at 315bar
6.油液清潔度(Cleaning code):20/18/15(NAS9)
7.工作溫度(Temperature range):-20~+100℃
8.每轉壓力變化(Pressure change per turn):70bar
9.安裝扭矩(Installation Torque):35~40Nm
10.鎖緊扭矩(Nut Tightening Torque):38~43Nm
-
EMXF16-01 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力 (Rated pressure):175bar
2.額定流量(Rated flow):40L/min
3.開啟率(Cracking Rate):≥85%
4.閉合率(Closing Rate):≥80%
5.補油開啟壓力( Oil make-up Cracking Pressure):0.7bar
6.內泄漏(internal Leakage):≤2ml/min at 131bar
7.油液清潔度(Cleaning code):20/18/15(NAS9)
8.工作溫度(Temperature range):-20~+100℃
9.每轉壓力變化(Pressure change per turn):532bar
10.安裝扭矩(Installation Torque):45~50Nm
11.鎖緊扭矩(Nut Tightening Torque):35~40Nm
-
EMXF15-10 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):200bar
2.額定流量(Rated flow):60L/min
3.開啟率(Cracking Rate)≥90%
4.閉合率(Closing Rate)≥85%
5.補油開啟壓力(Oil make-up Cracking Pressure):0.4 bar
6.內泄漏 (Internal Leakage)≤50ml/min at 150bar
7.油液清潔度(Cleaning code):20/18/15(NAS9)
8.工作溫度(Temperature range):-20~+100℃
9.每裝壓力變化(Pressure change per turn):250bar
10.安裝扭矩(Installation Torque):45~50Nm
11.鎖緊扭矩(Nut Tightening Torque):30~35Nm
-
EMXF12-10 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):200bar
2.額定流量(Rated flow):60L/min
3.開啟率(Cracking Rate)≥90%
4.閉合率(Closing Rate)≥85%
5.補油開啟壓力(Oil make-up Cracking Pressure):0.7bar
6.內泄漏(Internal Leakage)≤3ml/min at 150bar
7.油液清潔度(Cleaning code):20/18/15(NAS9)
8.工作溫度(Temperature range):-20~+100℃
9.每轉壓力變化(Pressure change per turn):115.9bar
10.安裝扭矩(Installation Torque):40~45Nm
11.鎖緊扭矩(Nut Tightening Torque):10~12Nm
-
EMJF06-02 減壓閥 Reducing valves
技術參數 Specifications更多 +
1.最大流量(Flow Max):11L/min
2.最大輸入壓力(Pressure input Max):350bar
3.減壓力(Pressure reducing):33+2bar
4.泄漏量(Internal leakage)≤90ml/min at 200bar
5.油液清潔度(Cleaning code):20/18/15(NAS9)
6.工作溫度(Temperature range):-20~+100℃
7.安裝扭矩(Installation torque):33~40Nm
-
EMYF05-18 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):250bar
2.額定流量(Rated flow):60L/min
3.開啟率(Cracking Rate)≥90%
4.閉合率(Closing Rate)≥85%
5.內泄漏(Internal leakage) ≤10ml/min at 187bar
6.油液清潔度(Cleaning code):20/18/15(NAS9)
7.工作溫度(Temperature range):-20~+100℃
8.每轉壓力變化(Pressure change per turn):67bar
9.安裝扭矩(Installation Torque):35~40Nm
10.鎖緊扭矩(Nut Tightening Torque):10~12Nm
-
EMYF05-15A1 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):150bar
2.額定流量(Rated flow):15L/min
3.開啟率(Cracking Rate):≥92%
4.閉合率(Closing Rate):≥88%
5.內泄漏(Internal leakage) :≤10ml/min at 112bar
6.油液清潔度(Cleaning code):20/18/15(NAS9)
7.工作溫度(Temperature range):-20~+100℃
8.每轉壓力變化(Pressure change per turn):38.9bar
9.安裝扭矩(Installation Torque):35~40Nm
10.鎖緊扭矩(Nut Tightening Torque):30~34Nm
-
EMXF12-06 溢流閥 Relief valves
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):280bar
2.額定流量(Rated flow):100L/min
3.開啟率(Cracking Rate):≥88%
4.閉合率(Closing Rate):≥83%
5.油液清潔度(Cleaning code):20/18/15(NAS9)
6.工作溫度(Temperature range):-20~+100℃
7.每轉壓力變化(Pressure change per turn):313bar
8.安裝扭矩(Installation Torque):45~55Nm
9.鎖緊扭矩(Nut Tightening Torque):10~12Nm
-
EMQF12-02 壓力補償節流閥 Restriction valves for pressure compensation
技術參數 Specifications更多 +
1.額定壓力(Rated pressure):300bar
2.額定輸入流量(Rated flow input):60L/min
3.輪出流量調節范圍(Output flow regulation range):0~30L/min
4.油液清潔度(Cleaning code):20/18/15(NAS9)
5.工作溫度(Temperature range):-20~+100℃
6.安裝扭矩(Installation Torque):40~45Nm
