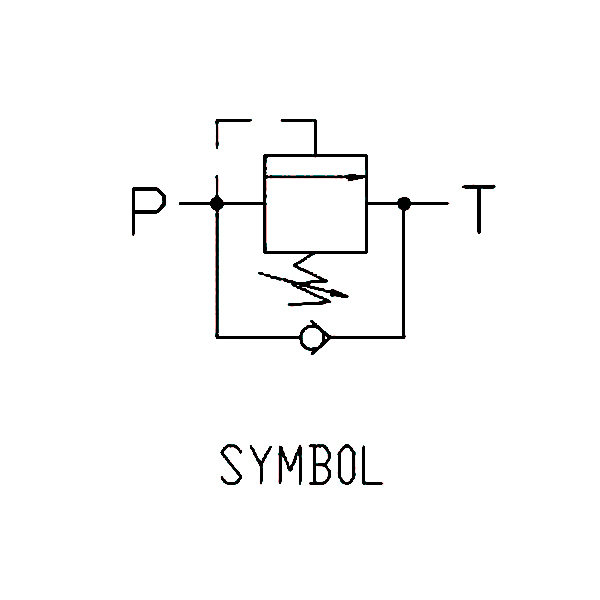

閥的額定壓力是通過調節彈簧力實現，當P口壓力達到設定壓力后，閥被打開，P到T開始溢流;反方向，從T到P可以很低的壓力打開。該閥反應靈敏、內泄漏小。

The rated pressure of the valve is achieved by adjusting the spring force and allows free flow from P to T while the pressure at P reaches the valve setting; In the opposite direction free flow from T to P at very low pressure. The valve offers quick response and low internal leakage.

1.額定壓力(Rated pressure):83bar

2.額定流量(Rated flow):40L/min

3.開啟率(Cracking Rate)≥85%

4.閉合率(Closing Rate)≥80%

5.補油開啟壓力(Oil Make-up Cracking Pressure):0.1bar

6.內泄漏(Internal Leakage) ≤5 ml/min at 62 bar

7.油液清潔度(Cleaning Code):20/18/15(NAS9)

8.工作溫度(Temperature range):-20~+100℃

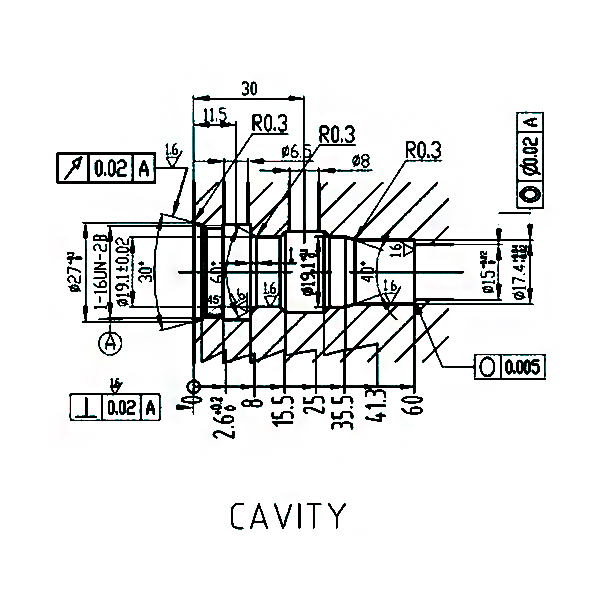

9.安裝扭矩(Installation Torque):42~47Nm

10.鎖緊扭矩(Nut Tightening Torque):38~43Nm
